Connector End View C1465 - Front Impact Severity Sensor LH

OEM Connector End Views

Source configuration appliesSource reference 4,155HTML edition

Service Pigtail

Not Available

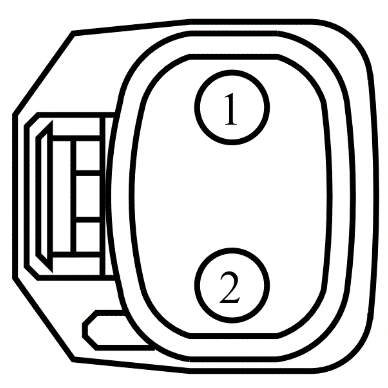

Connector End View C1465 - Front Impact Severity Sensor LH — original illustration 1, reference 4155Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function
1	GD192 (BK)	4	GROUND - FENDER FRONT LEFT # 5TH POINT
2	SBF02 (RD)	4	FUSE - 2
2	SBF02 (YE-RD)	4	FUSE - 2

CONNECTOR VIEWS > CONNECTOR END VIEW C1465 - FRONT IMPACT SEVERITY

SENSOR LH

Connector:C1465

Description

FRONT IMPACT SEVERITY SENSOR LH

Color

Harness

14290

Base Part #

Ford_Mustang_all_2015-2017.pdf · source reference 4155

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
