Connector End View C1452 - Variable Camshaft Timing Bank 2 Solenoid 1 (Vct21)

OEM Connector End Views

Source configuration appliesSource reference 4,152HTML edition

See Below

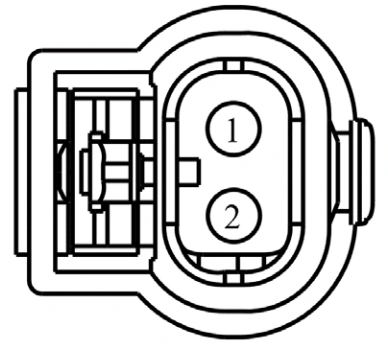

Connector End View C1452 - Variable Camshaft Timing Bank 2 Solenoid 1 (Vct21) — original illustration 1, reference 4152Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK02 (GN)	20	FUSE - 40 OR CIRCUIT BREAKER (VPWR 2)
2	CE442 (YE-GY)	20	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 3

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-1250 CU2Z-14S411-CA

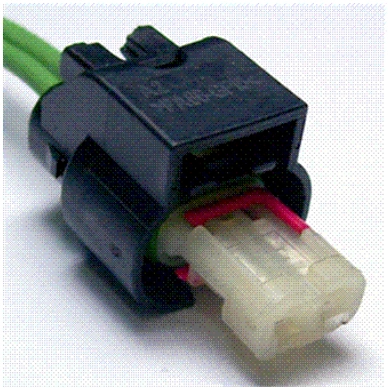

Connector End View C1452 - Variable Camshaft Timing Bank 2 Solenoid 1 (Vct21) — original illustration 2, reference 4152Original colors & callouts · Select to enlarge

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses

Solenoid - Engine Variable Timing

Ford_Mustang_all_2015-2017.pdf · source reference 4152

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
