Connector End View C1451 - Variable Camshaft Timing Bank 1 Solenoid 1 (Vct11)

OEM Connector End Views

Source configuration appliesSource reference 4,150HTML edition

← Chapter contents Manual collection

WPT-1063 AU2Z-14S411-MA

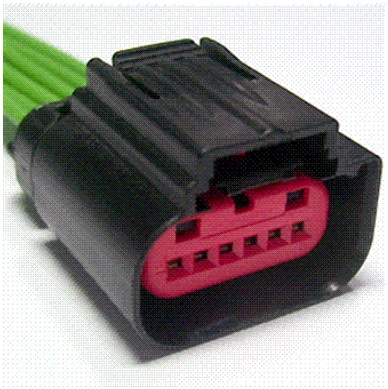

Connector End View C1451 - Variable Camshaft Timing Bank 1 Solenoid 1 (Vct11) — original illustration 1, reference 4150Original colors & callouts · Select to enlarge

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses

Control - Electronic Throttle

CONNECTOR VIEWS > CONNECTOR END VIEW C1451 - VARIABLE CAMSHAFT

TIMING BANK 1 SOLENOID 1 (VCT11)

Connector:C1451

Description

VARIABLE CAMSHAFT TIMING BANK 1 SOLENOID 1 (VCT11)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

Not Available

Ford_Mustang_all_2015-2017.pdf · source reference 4150
