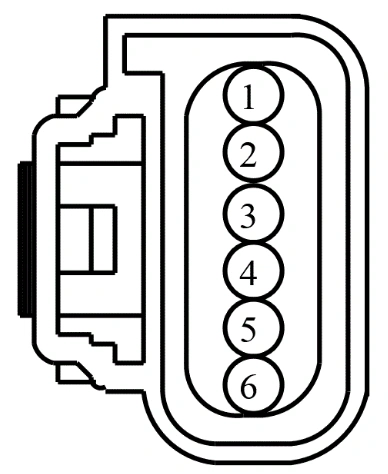

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CE412 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) | |
2 | CE426 (BU-GN) | 18 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) | |
3 | VE818 (BN) | 20 | SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-) | |
4 | RE134 (BU-OG) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) | |
5 | LE134 (YE) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) | |
6 | VE819 (GN-VT) | 20 | SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2-) |
