Connector End View C1582 - Proximity Warning Radar Unit

OEM Connector End Views

Source configuration appliesSource reference 4,189HTML edition

← Chapter contents Manual collection

WPT-1390 EU2Z-14S411-HA

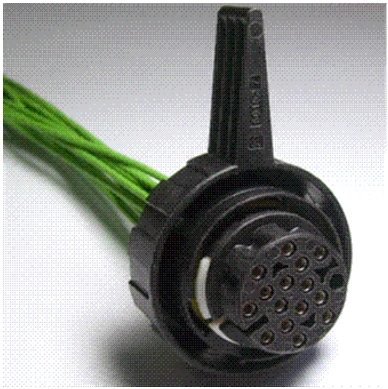

Connector End View C1582 - Proximity Warning Radar Unit — original illustration 1, reference 4189Original colors & callouts · Select to enlarge

Gauge:

18

Pin material:

Silver

Cavities:

16

Vehicle Uses

Transmission - Bulkhead

CONNECTOR VIEWS > CONNECTOR END VIEW C1582 - PROXIMITY WARNING

RADAR UNIT

Connector:C1582

Description

PROXIMITY WARNING RADAR UNIT

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below

Ford_Mustang_all_2015-2017.pdf · source reference 4189
