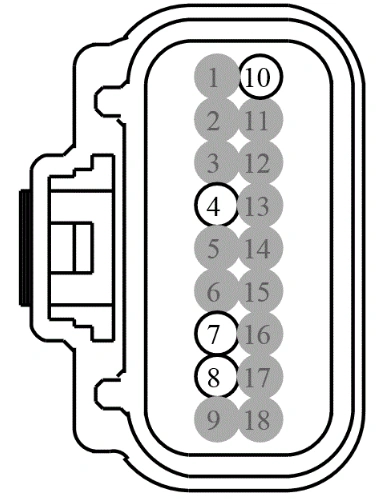

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | * | * | Not Used | |
2 | * | * | Not Used | |
3 | * | * | Not Used | |
4 | GD120 (BK-GN) | 18 | GROUND - FENDER FRONT LEFT | |
5 | * | * | Not Used | |
6 | * | * | Not Used | |
7 | VDB26 (GY-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | |
8 | VDB25 (GN-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH |
