Base Part #
Service Pigtail
See Below
Check for Terminal Part Numbers

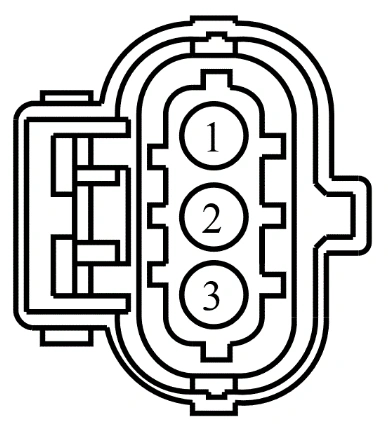

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VE824 (YE-GN) | 18 | SENSOR - BOOST PRESSURE | |
2 | RE406 (GY-VT) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SIGRTN) | |
3 | LE423 (GN-VT) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1068 | Service Part Number: AU2Z-14S411-JA |
