Connector End View C1601 - Ignition Coil-On-Plug 1 — OEM Connector End Views · Reference 4194

Gauge:

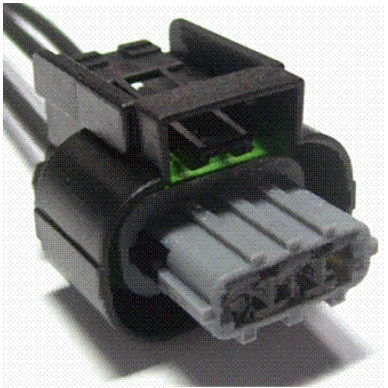

Connector End View C1601 - Ignition Coil-On-Plug 1 — original illustration 1, reference 4194Original colors & callouts · Select to enlarge

14

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses

Sensor - Cam Shaft Position

Sensor - Manifold Absolute Pressure (MAP)

Service Part Number:

Pigtail Kit Part Number AU2Z-14S411-JB

WPT-1369 Gauge:

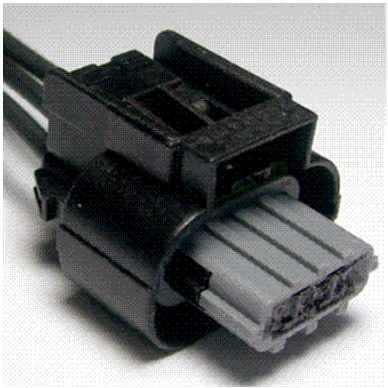

Connector End View C1601 - Ignition Coil-On-Plug 1 — original illustration 2, reference 4194Original colors & callouts · Select to enlarge

16

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses

Sensor - Cam Shaft Position

Sensor - Manifold Absolute Pressure (MAP)

Sensor - Turbo Intake Pressure/Temperature
