Connector End View C1602 - Ignition Coil-On-Plug 2

OEM Connector End Views

Source configuration appliesSource reference 4,196HTML edition

← Chapter contents Manual collection

Pigtail Kit Part Number Service Part Number:

WPT-931 9U2Z-14S411-EA

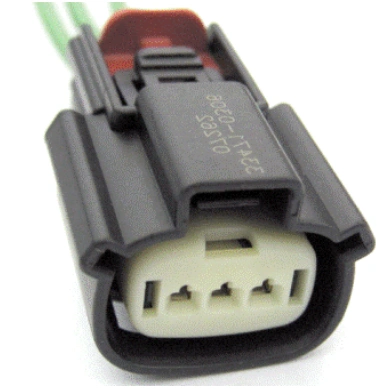

Connector End View C1602 - Ignition Coil-On-Plug 2 — original illustration 1, reference 4196Original colors & callouts · Select to enlarge

Gauge:

14

Pin material:

Silver

Cavities:

3

Vehicle Uses

Coil - Ignition

CONNECTOR VIEWS > CONNECTOR END VIEW C1602 - IGNITION COIL-ON-PLUG 2

Connector:C1602

Description

IGNITION COIL-ON-PLUG 2

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Ford_Mustang_all_2015-2017.pdf · source reference 4196
