Connector End View C1601 - Ignition Coil-On-Plug 1

OEM Connector End Views

Source configuration appliesSource reference 4,195HTML edition
← Chapter contentsManual collection

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

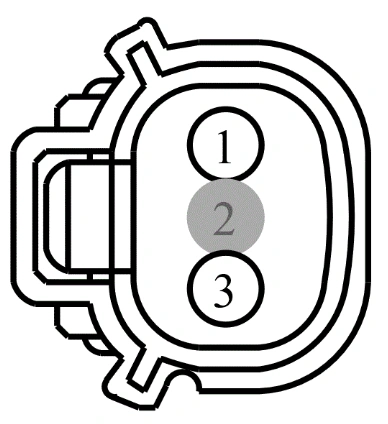

Connector End View C1601 - Ignition Coil-On-Plug 1 — original illustration 1, reference 4195Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CE303 (WH-VT)

18

CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP1A)

2

*

*

Not Used

3

CBK04 (VT)

16

FUSE - 44 OR CIRCUIT BREAKER (VPWR)

3

CBK04 (VT)

18

FUSE - 44 OR CIRCUIT BREAKER (VPWR)

Available Pigtail Kits
