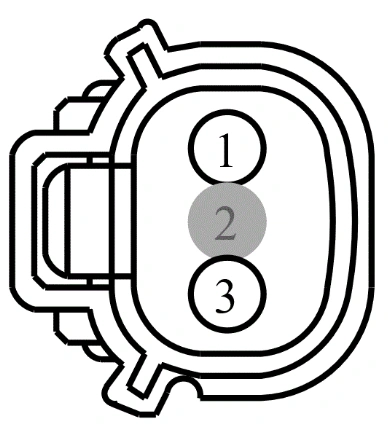

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CE304 (YE-BU) | 20 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2C) | 3.7L |
1 | CE304 (YE-BU) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2H) | 5.0L |
2 | * | * | Not Used | |
3 | CBK04 (VT) | 18 | FUSE - 44 OR CIRCUIT BREAKER (VPWR) |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-931 | Service Part Number: 9U2Z-14S411-EA Gauge: 14 Pin material: Silver |
