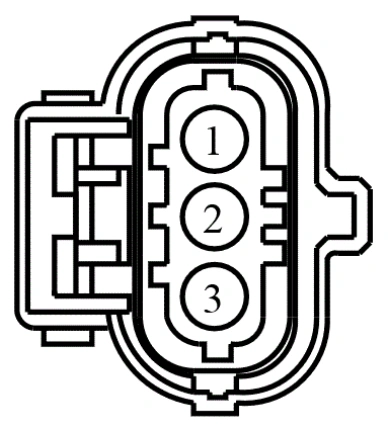

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CMC14 (BN-YE) | 18 | SENSOR - LOW LEVEL ENGINE OIL | |
2 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 | |
3 | LE458 (BU-WH) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2) |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1066 | Service Part Number: AU2Z-14S411-GA Gauge: 14 Pin material: Tin (greased) Cavities: 3 |
