Connector End View C1673 - Fuel Injection Pump

OEM Connector End Views

Source configuration appliesSource reference 4,243HTML edition

← Chapter contents Manual collection

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-1251 CU2Z-14S411-DA

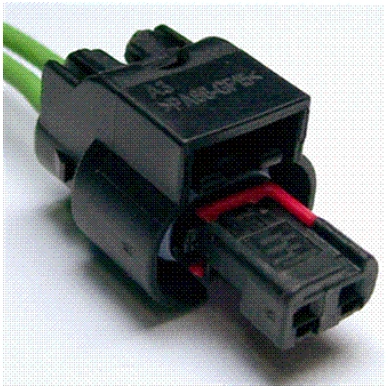

Connector End View C1673 - Fuel Injection Pump — original illustration 1, reference 4243Original colors & callouts · Select to enlarge

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses

Solenoid - Engine Variable Timing

CONNECTOR VIEWS > CONNECTOR END VIEW C1673 - FUEL INJECTION PUMP

Connector:C1673

Description

FUEL INJECTION PUMP

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below
