CONNECTOR VIEWS > CONNECTOR END VIEW C1671 - VARIABLE CAMSHAFT

TIMING BANK 1 SOLENOID 2 (VCT12)

Connector:C1671

Description

VARIABLE CAMSHAFT TIMING BANK 1 SOLENOID 2 (VCT12)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

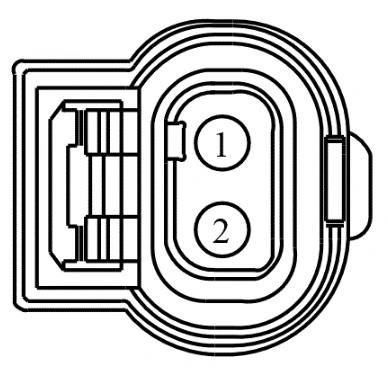

Connector End View C1671 - Variable Camshaft Timing Bank 1 Solenoid 2 (Vct12) — original illustration 1, reference 4242Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK02 (GN)	18	FUSE - 40 OR CIRCUIT BREAKER (VPWR)
2	CE422 (WH-OG)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT12)
