Connector End View C1657 - Engine Oil Pressure (Eop) Sensor

OEM Connector End Views

Source configuration appliesSource reference 4,239HTML edition

← Chapter contents Manual collection

Connector:C1657

Description

ENGINE OIL PRESSURE (EOP) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

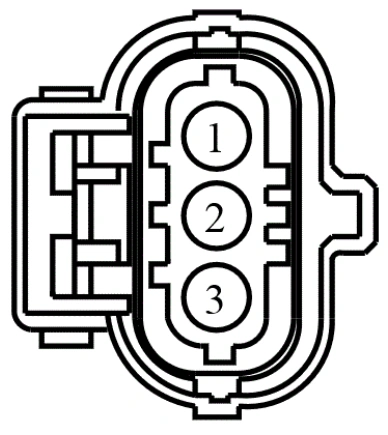

Connector End View C1657 - Engine Oil Pressure (Eop) Sensor — original illustration 1, reference 4239Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function
1	CMC24 (GY) 18		SWITCH - OIL PRESSURE
2	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2
3	LE423 (GN-VT)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)
