Connector End View C1657 - Engine Oil Pressure (Eop) Sensor — OEM Connector End Views · Reference 4238

6 GD120 (BK-GN) 14 GROUND - FENDER FRONT LEFT CRW14 7 14 CTRL MOD. - FRONT WASHER (BU-WH) CRW03 8 12 RELAY - FRONT WIPER (VT-WH) 9 * * Not Used 10 * * Not Used 11 * * Not Used 12 * * Not Used

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-1316 BU2Z-14S411-AB

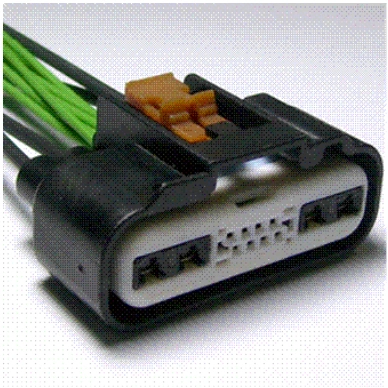

Connector End View C1657 - Engine Oil Pressure (Eop) Sensor — original illustration 1, reference 4238Original colors & callouts · Select to enlarge

Gauge:

14 20

Pin material:

Tin & Silver

Cavities:

12

Vehicle Uses

Motor - Windshield Wiper

CONNECTOR VIEWS > CONNECTOR END VIEW C1657 - ENGINE OIL PRESSURE

(EOP) SENSOR

Ford_Mustang_all_2015-2017.pdf · source reference 4238

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
