Connector End View C1656 - Windshield Wiper Motor

OEM Connector End Views

Source configuration appliesSource reference 4,237HTML edition

Service Pigtail

See Below

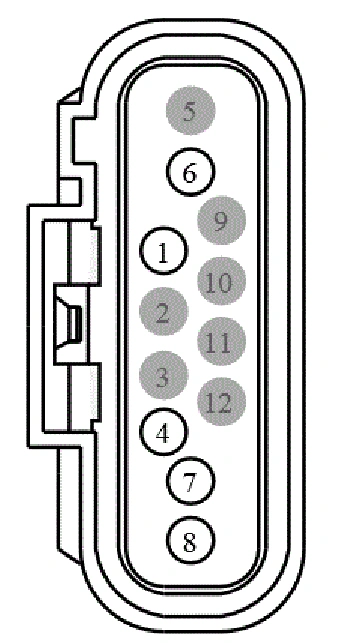

Connector End View C1656 - Windshield Wiper Motor — original illustration 1, reference 4237Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function
1	CRW15 (BN-WH)	18	CTRL MOD. - FRONT WIPER HIGH
2	*	*	Not Used
3	*	*	Not Used
4	VDN05 (YE)	18	CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1
5	*	*	Not Used
