Connector End View C1650 - Turbocharger Bypass Valve ( T Cby) — OEM Connector End Views · Reference 4234

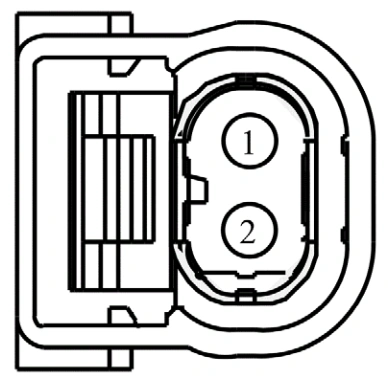

Connector End View C1650 - Turbocharger Bypass Valve ( T Cby) — original illustration 1, reference 4234Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK03 (GY)	18	FUSE - 42 OR CIRCUIT BREAKER (VPWR 3)
2	CE148 (YE-GY)	18	CTRL MOD. - POWERTRAIN # ENGINE COOLANT BYPASS VALVE

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-1303 CU2Z-14S411-ATA

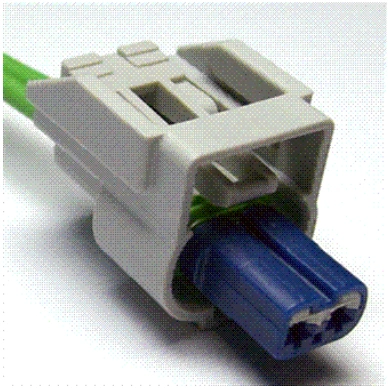

Connector End View C1650 - Turbocharger Bypass Valve ( T Cby) — original illustration 2, reference 4234Original colors & callouts · Select to enlarge

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses

Solenoid - Turbo Charger Bypass
