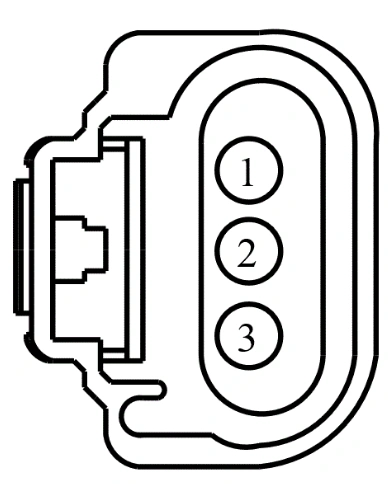

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | LDC59 (BU-WH) 20 | CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR + | ||
2 | RDC59 (GY-BN) | 20 | CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR - | |
3 | SDC57 (OG-BU) 20 | CTRL MOD. - BATTERY MONITORING SYSTEM MONITOR |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1236 | Service Part Number: 3U2Z-14S411-FKAE Gauge: 16 Pin material: Silver Cavities: 3 |
