Connector End View C1645 - Generator Current Sensor — OEM Connector End Views · Reference 4230

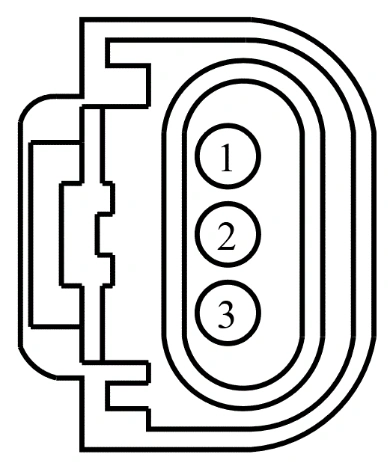

Connector End View C1645 - Generator Current Sensor — original illustration 1, reference 4230Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function
1	LE423 (GN-VT)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)
2	RE406 (GY-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B)
3	VDC61 (VT-GN)	20	SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR

Available Pigtail Kits

Service Part Number:

EU2Z-14S411-UA

Pigtail Kit Part Number

Gauge:

WPT-1413

18

Connector End View C1645 - Generator Current Sensor — original illustration 2, reference 4230Original colors & callouts · Select to enlarge

Pin material:

Tin (greased)

Cavities:

Ford_Mustang_all_2015-2017.pdf · source reference 4230
