Connector End View C1643 - Fuel Pressure Sensor

OEM Connector End Views

Source configuration appliesSource reference 4,227HTML edition

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CMC24 (GY)	18	SWITCH - OIL PRESSURE

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

3U2Z-14S411-MHA

WPT-439

Gauge:

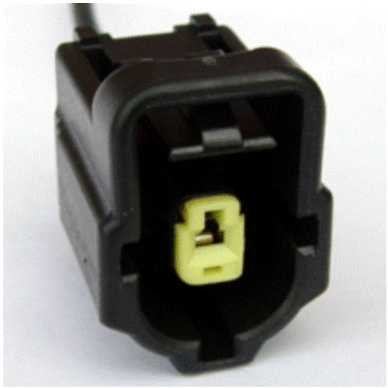

Connector End View C1643 - Fuel Pressure Sensor — original illustration 1, reference 4227Original colors & callouts · Select to enlarge

14

Pin material:

Tin

Cavities:

1

Vehicle Uses

Sensor - Oil Pressure

Switch - Oil Sending Unit

CONNECTOR VIEWS > CONNECTOR END VIEW C1643 - FUEL PRESSURE SENSOR

Connector:C1643

Description

FUEL PRESSURE SENSOR

Color

LT GY

Harness

12C508

Base Part #

part# N/A
