Service Pigtail
Check for Terminal Part Numbers

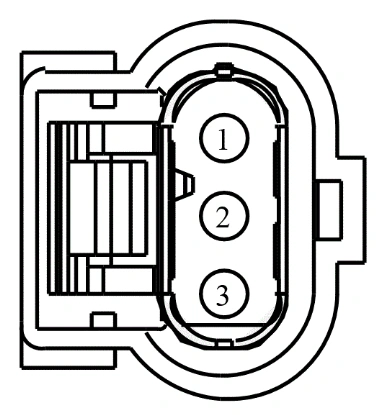

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VE761 (BN-BU) | 18 | SENSOR - FUEL LOW PRESSURE (FLP) | |
2 | RE454 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN (SIGRTN) | |
3 | LE230 (BU) | 18 | CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (VREF) |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1308 | Service Part Number: CU2Z-14S411-AVA Gauge: 18 Pin material: Silver |
