CONNECTOR VIEWS > CONNECTOR END VIEW C1642 - ENGINE OIL PRESSURE

(EOP) SENSOR

Connector:C1642

Description

ENGINE OIL PRESSURE (EOP) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

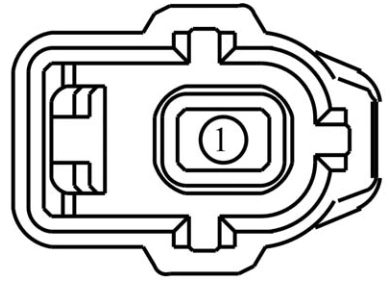

Connector End View C1642 - Engine Oil Pressure (Eop) Sensor — original illustration 2, reference 4226Original colors & callouts · Select to enlarge
