Check for Terminal Part Numbers

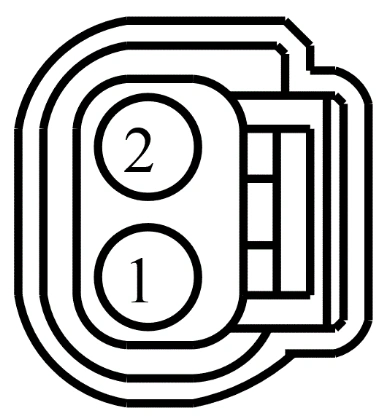

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | RE429 (GY-OG) | 20 | CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN) (CAMSHAFT POSITION) | |
2 | VE706 (BN-BU) | 20 | SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP12) |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-986 | Service Part Number: 3U2Z-14S411-SLB Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses Coil - Ignition |
