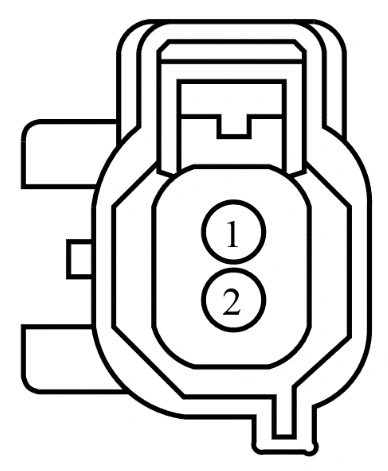

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VE802 (BN-BU) | 18 | SENSOR - KNOCK 2ND BANK 1ST (KS2+) | |
2 | RE324 (BN-GN) | 18 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2-) |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1116 | Service Part Number: AU2Z-14S411-BJA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Lamp - Running Board |
