Connector End View C1615 - Knock Sensor 2 (Ks2)

OEM Connector End Views

Source configuration appliesSource reference 4,220HTML edition

← Chapter contents Manual collection

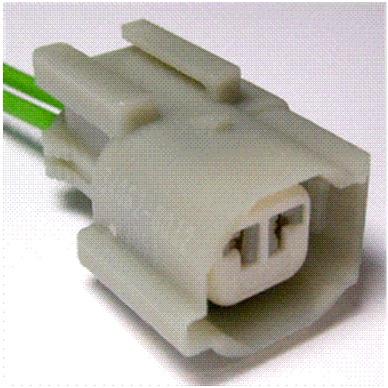

Connector End View C1615 - Knock Sensor 2 (Ks2) — original illustration 1, reference 4220Original colors & callouts · Select to enlarge

Sensor - Knock

Sensor - Speed

Sensor - Water in Fuel

CONNECTOR VIEWS > CONNECTOR END VIEW C1615 - KNOCK SENSOR 2 (KS2)

Connector:C1615

Description

KNOCK SENSOR 2 (KS2)

Color

Harness

14B485

Base Part #

part# N/A

Service Pigtail

See Below

Ford_Mustang_all_2015-2017.pdf · source reference 4220

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
