Connector End View C1614 - Knock Sensor 1 (Ks1)

OEM Connector End Views

Source configuration appliesSource reference 4,218HTML edition

← Chapter contents Manual collection

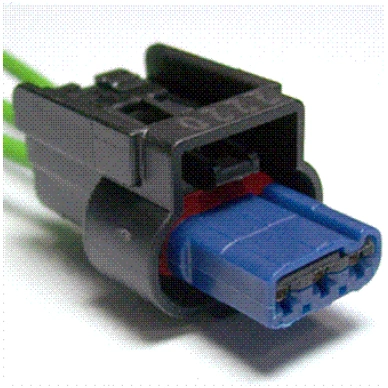

Connector End View C1614 - Knock Sensor 1 (Ks1) — original illustration 1, reference 4218Original colors & callouts · Select to enlarge

Vehicle Uses

Actuator - Turbocharger Waste Gate

Coil - Ignition

Sensor - Cam Shaft Position

Sensor - Crank Shaft Position

CONNECTOR VIEWS > CONNECTOR END VIEW C1614 - KNOCK SENSOR 1 (KS1)

Connector:C1614

Description

KNOCK SENSOR 1 (KS1)

Color

Harness

14B485

Base Part #

part# N/A

Service Pigtail

See Below
