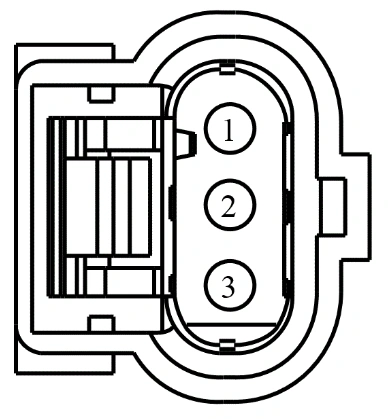

CONNECTOR VIEWS > CONNECTOR END VIEW C1612 - CAMSHAFT POSITION BANK
1 SENSOR 1 (CMP11)
Connector:C1612
Description
CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11)
Color
BK
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VE736 (WH-GN) | 18 | SENSOR - CAMSHAFT POSITION BANK 1 EX (CMP11) | |
2 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 (SIGRTN) |
