Connector End View C1613 - Camshaft Position Bank 2 Sensor 1 (Cmp21)

OEM Connector End Views

Source configuration appliesSource reference 4,216HTML edition

← Chapter contents Manual collection

Available Pigtail Kits

Service Part Number:

BU2Z-14S411-ARA

Pigtail Kit Part Number

Gauge:

WPT-1202

16

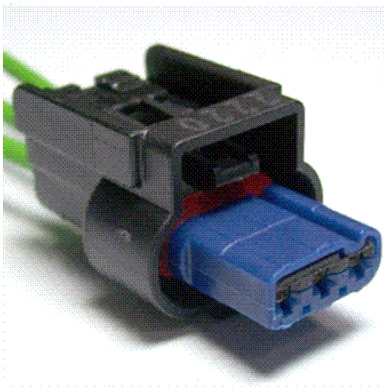

Connector End View C1613 - Camshaft Position Bank 2 Sensor 1 (Cmp21) — original illustration 1, reference 4216Original colors & callouts · Select to enlarge

Pin material:

Silver

Cavities:

3

Vehicle Uses

Actuator - Turbocharger Waste Gate

Coil - Ignition

Sensor - Cam Shaft Position

Sensor - Crank Shaft Position

CONNECTOR VIEWS > CONNECTOR END VIEW C1613 - CAMSHAFT POSITION BANK

2 SENSOR 1 (CMP21)

Connector:C1613

Description

CAMSHAFT POSITION BANK 2 SENSOR 1 (CMP21)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below
