Connector End View C1611 - Variable Camshaft Timing Bank 2 Solenoid 2 (Vct22)

OEM Connector End Views

Source configuration appliesSource reference 4,214HTML edition

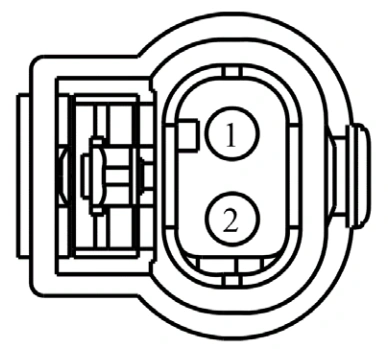

Connector End View C1611 - Variable Camshaft Timing Bank 2 Solenoid 2 (Vct22) — original illustration 1, reference 4214Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK02 (GN)	20	FUSE - 40 OR CIRCUIT BREAKER (VPWR)
2	CE443 (BN-VT)	20	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 4 (VCT22)

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-1251 CU2Z-14S411-DA

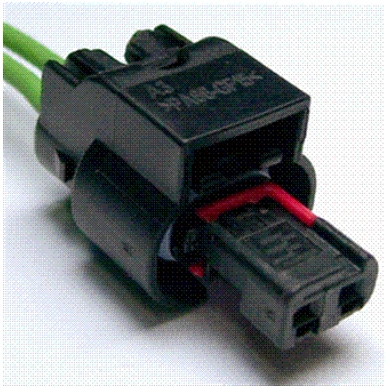

Connector End View C1611 - Variable Camshaft Timing Bank 2 Solenoid 2 (Vct22) — original illustration 2, reference 4214Original colors & callouts · Select to enlarge

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses

Solenoid - Engine Variable Timing

Ford_Mustang_all_2015-2017.pdf · source reference 4214
