Check for Terminal Part Numbers

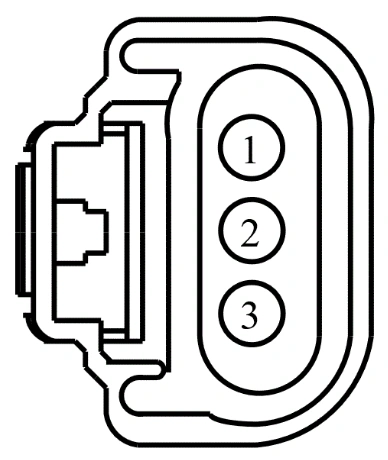

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VCA38 (BN-VT) | 20 | SENSOR - BRAKE VACUUM SIGNAL 1 | |
2 | RCA37 (WH-BU) | 20 | CTRL MOD. - SENSOR BRAKE VACUUM - | |
3 | LCA37 (YE-RD) | 20 | CTRL MOD. - SENSOR BRAKE VACUUM + |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1337 | Service Part Number: 9U2Z-14S411-AB Gauge: 16 Pin material: Silver Cavities: 3 |
