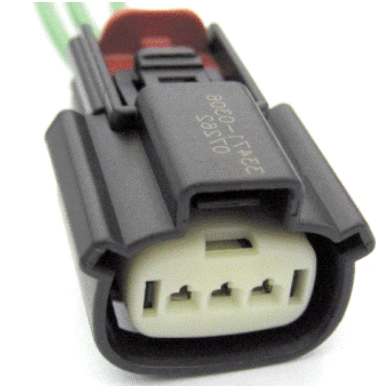

Connector End View C1609 - Brake Vacuum Switch — original illustration 1, reference 4210Original colors & callouts · Select to enlarge

Coil - Ignition

CONNECTOR VIEWS > CONNECTOR END VIEW C1609 - BRAKE VACUUM SWITCH

Connector:C1609

Description

BRAKE VACUUM SWITCH

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below
