Connector End View C1610 - Variable Camshaft Timing Bank 1 Solenoid 2 (Vct12)

OEM Connector End Views

Source configuration appliesSource reference 4,212HTML edition

← Chapter contents Manual collection

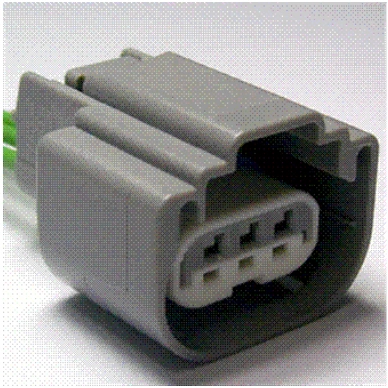

Connector End View C1610 - Variable Camshaft Timing Bank 1 Solenoid 2 (Vct12) — original illustration 1, reference 4212Original colors & callouts · Select to enlarge

Vehicle Uses

Sensor - Brake Booster Travel

Sensor - Brake Pressure

Sensor - Brake Vacuum

Sensor - Manifold Absolute Pressure (MAP)

Sensor - Occupant Classification

CONNECTOR VIEWS > CONNECTOR END VIEW C1610 - VARIABLE CAMSHAFT

TIMING BANK 1 SOLENOID 2 (VCT12)

Connector:C1610

Description

VARIABLE CAMSHAFT TIMING BANK 1 SOLENOID 2 (VCT12)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

Not Available

Ford_Mustang_all_2015-2017.pdf · source reference 4212
