Connector End View C1611 - Variable Camshaft Timing Bank 2 Solenoid 2 (Vct22)

OEM Connector End Views

Source configuration appliesSource reference 4,213HTML edition

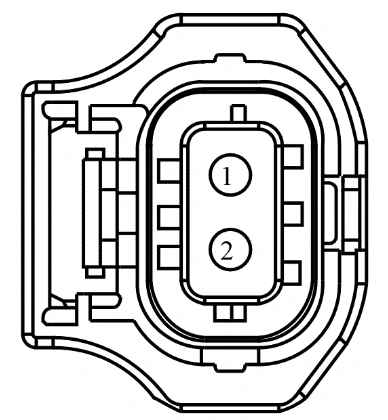

Connector End View C1611 - Variable Camshaft Timing Bank 2 Solenoid 2 (Vct22) — original illustration 1, reference 4213Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE422 (WH-OG)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT12)
2	CBK02 (GN)	18	FUSE - 40 OR CIRCUIT BREAKER (VPWR)

CONNECTOR VIEWS > CONNECTOR END VIEW C1611 - VARIABLE CAMSHAFT

TIMING BANK 2 SOLENOID 2 (VCT22)

Connector:C1611

Description

VARIABLE CAMSHAFT TIMING BANK 2 SOLENOID 2 (VCT22)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below
