Connector End View C1625 - Camshaft Position Bank 2 Sensor 2 (Cmp22)

OEM Connector End Views

Source configuration appliesSource reference 4,224HTML edition

← Chapter contents Manual collection

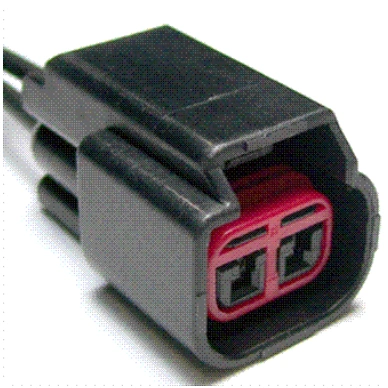

Connector End View C1625 - Camshaft Position Bank 2 Sensor 2 (Cmp22) — original illustration 1, reference 4224Original colors & callouts · Select to enlarge

Lamp - License

Sensor - Cam Shaft Position

Sensor - Crank Shaft Position

CONNECTOR VIEWS > CONNECTOR END VIEW C1625 - CAMSHAFT POSITION BANK

2 SENSOR 2 (CMP22)

Connector:C1625

Description

CAMSHAFT POSITION BANK 2 SENSOR 2 (CMP22)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below
