Connector End View C1651 - Active Grille Shutter

OEM Connector End Views

Source configuration appliesSource reference 4,235HTML edition
← Chapter contentsManual collection

CONNECTOR VIEWS > CONNECTOR END VIEW C1651 - ACTIVE GRILLE SHUTTER

Connector:C1651

Description

ACTIVE GRILLE SHUTTER

Color

BK

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below

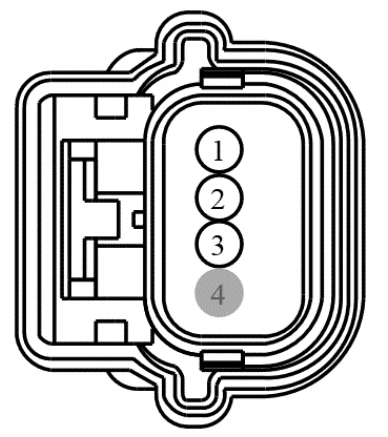

Connector End View C1651 - Active Grille Shutter — original illustration 1, reference 4235Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

GD120 (BK-GN) 18

GROUND - FENDER FRONT LEFT

2

VDN06 (WH-GN)

20

CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1

Ford_Mustang_all_2015-2017.pdf · source reference 4235
