Connector End View C1670 - Variable Camshaft Timing Bank 1 Solenoid 1 (Vct11)

OEM Connector End Views

Source configuration appliesSource reference 4,240HTML edition

← Chapter contents Manual collection

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-1066 AU2Z-14S411-GA

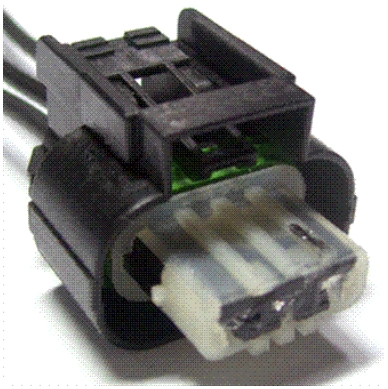

Connector End View C1670 - Variable Camshaft Timing Bank 1 Solenoid 1 (Vct11) — original illustration 1, reference 4240Original colors & callouts · Select to enlarge

Gauge:

14

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses

Sensor - Fuel Rail Pressure

CONNECTOR VIEWS > CONNECTOR END VIEW C1670 - VARIABLE CAMSHAFT

TIMING BANK 1 SOLENOID 1 (VCT11)

Connector:C1670

Description

VARIABLE CAMSHAFT TIMING BANK 1 SOLENOID 1 (VCT11)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below
