Connector End View C1670 - Variable Camshaft Timing Bank 1 Solenoid 1 (Vct11)

OEM Connector End Views

Source configuration appliesSource reference 4,241HTML edition

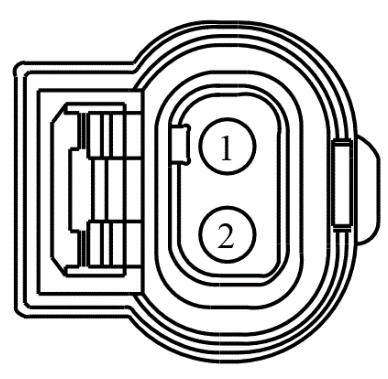

Connector End View C1670 - Variable Camshaft Timing Bank 1 Solenoid 1 (Vct11) — original illustration 1, reference 4241Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK02 (GN)	18	FUSE - 40 OR CIRCUIT BREAKER (VPWR)
2	CE421 (VT)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT11)

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-1251 CU2Z-14S411-DA

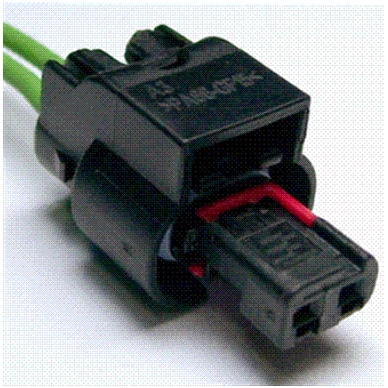

Connector End View C1670 - Variable Camshaft Timing Bank 1 Solenoid 1 (Vct11) — original illustration 2, reference 4241Original colors & callouts · Select to enlarge

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses

Solenoid - Engine Variable Timing
