21 | * | * | Not Used |
22 | SBP33 (RD) | 16 | FUSE - 33 OR CIRCUIT BREAKER |

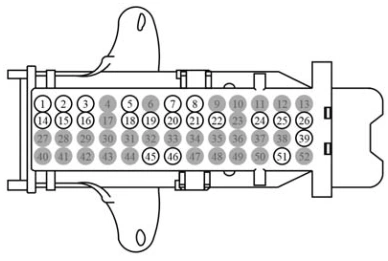

CONNECTOR VIEWS > CONNECTOR END VIEW C2280B - BODY CONTROL MODULE
(BCM)
Connector:C2280B
Description
BODY CONTROL MODULE (BCM)
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CPL45 (BN-WH) | 22 | SWITCH - LIFTGATE/DECKLID RELEASE |
