GD215 9 20 GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT (BK-GY) 10 * * Not Used 11 * * Not Used RMP19 12 22 CAMERA - PARKING AID REAR VIDEO - (BN-VT)
Original table alignment retained · Scroll horizontally if needed
Available Pigtail Kits
Service Part Number:
Pigtail Kit Part Number CU2Z-14S411-ABA
WPT-1278 Gauge:
18
Pin material:
Tin (greased)
Cavities:
12
Vehicle Uses
Message Center
Module - Driver Information
Module - Front Interface

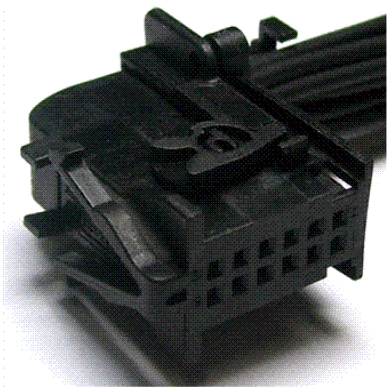

CONNECTOR VIEWS > CONNECTOR END VIEW C2280A - BODY CONTROL MODULE
(BCM)
Connector:C2280A
Description
BODY CONTROL MODULE (BCM)
