Connector End View C2280a - Body Control Module (Bcm)

OEM Connector End Views

Source configuration appliesSource reference 4,275HTML edition
← Chapter contentsManual collection

Color

BK

Harness

14401

Base Part #

part# N/A

Service Pigtail

Not Available

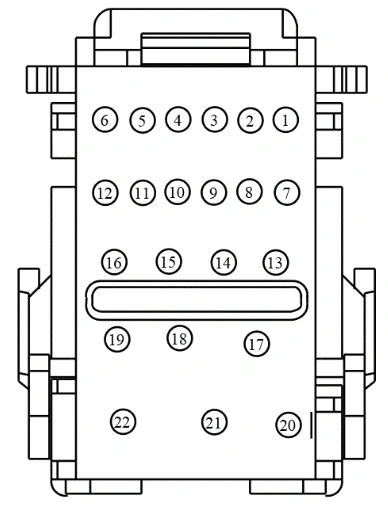

Connector End View C2280a - Body Control Module (Bcm) — original illustration 1, reference 4275Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CCB08 (VT-WH)

22

SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN

2

CBP23 (BN-YE)

22

FUSE - 23 OR CIRCUIT BREAKER

3

*

*

Not Used

4

CBP35 (YE-GY)

22

FUSE - 35 OR CIRCUIT BREAKER

Ford_Mustang_all_2015-2017.pdf · source reference 4275
