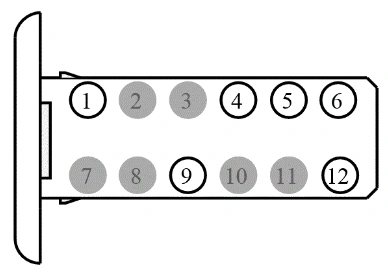

Service Pigtail
Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | SBP32 (VT-RD) | 22 | FUSE - 32 OR CIRCUIT BREAKER | |
2 | * | * | Not Used | |
3 | * | * | Not Used | |
4 | VDB29 (GN-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH | |
5 | VDB30 (WH-GN) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW | |
6 | VMP19 (WH-GN) | 22 | CAMERA - PARKING AID REAR VIDEO + | |
7 | * | * | Not Used | |
8 | * | * | Not Used |
