Connector End View C2123 - Front Control/Display Interface Module (Fcdim)

OEM Connector End Views

Source configuration appliesSource reference 4,272HTML edition
← Chapter contentsManual collection

Available Pigtail Kits

Service Part Number:

6U2Z-14S411-JB

Gauge:

Pigtail Kit Part Number 18

WPT-982 Pin material:

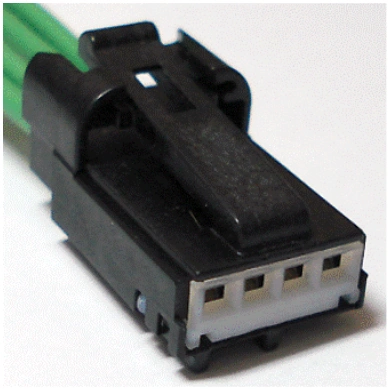

Connector End View C2123 - Front Control/Display Interface Module (Fcdim) — original illustration 1, reference 4272Original colors & callouts · Select to enlarge

Silver

Cavities:

4

Vehicle Uses

Module - Auto Lamps

Module - Front Interface

Sensor - EATC In Car Temperature

Sensor - Sunload

Solenoid - Brake Shift Park Interlock

Switch - Door Lock (LH)

Switch - Door Lock (RH)

CONNECTOR VIEWS > CONNECTOR END VIEW C2123 - FRONT CONTROL/DISPLAY

INTERFACE MODULE (FCDIM)

Connector:C2123

Description

FRONT CONTROL/DISPLAY INTERFACE MODULE (FCDIM)

Color

BK

Harness

14401

Base Part #
