Connector End View C2092 - Temperature Door Actuator RH

OEM Connector End Views

Source configuration appliesSource reference 4,269HTML edition

← Chapter contents Manual collection

Motor - Heater/AC Inlet Door

CONNECTOR VIEWS > CONNECTOR END VIEW C2092 - TEMPERATURE DOOR

ACTUATOR RH

Connector:C2092

Description

TEMPERATURE DOOR ACTUATOR RH

Color

Harness

18B574

Base Part #

part# N/A

Service Pigtail

See Below

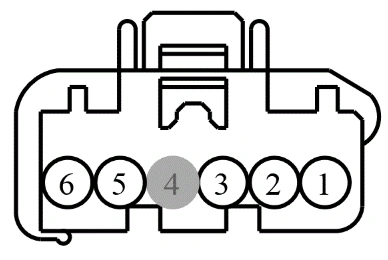

Connector End View C2092 - Temperature Door Actuator RH — original illustration 1, reference 4269Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RH111 (GY-BU)	22	CTRL MOD. - CLIMATE # GENERIC VREF RETURN
2	VH441 (WH)	26	SENSOR - DOOR POSITION TEMP. RIGHT
