Connector End View C2091 - Temperature Door Actuator LH — OEM Connector End Views · Reference 4267

2

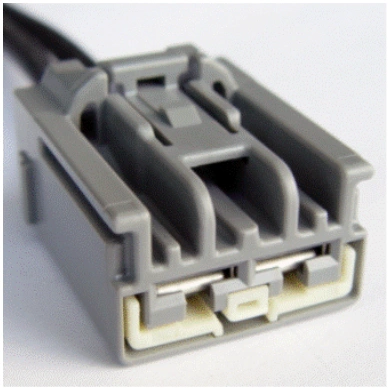

Connector End View C2091 - Temperature Door Actuator LH — original illustration 1, reference 4267Original colors & callouts · Select to enlarge

Vehicle Uses

Mirror - Vanity

Module - Seat Memory

Motor - Heater/AC Blower (Auxiliary)

Motor - Heater/AC Blower (Front)

Radio - Amplifier

Resistor - Blower Motor (Front)

Switch - Heater / A/C Blower (Front)

CONNECTOR VIEWS > CONNECTOR END VIEW C2091 - TEMPERATURE DOOR

ACTUATOR LH

Connector:C2091

Description

TEMPERATURE DOOR ACTUATOR LH

Color

Harness

18B574

Base Part #

part# N/A

Service Pigtail

See Below

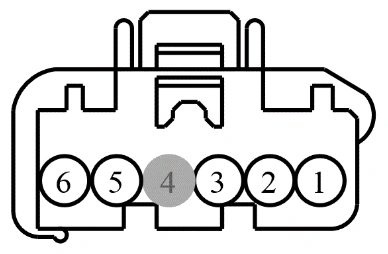

Connector End View C2091 - Temperature Door Actuator LH — original illustration 2, reference 4267Original colors & callouts · Select to enlarge

Ford_Mustang_all_2015-2017.pdf · source reference 4267
