Check for Terminal Part Numbers

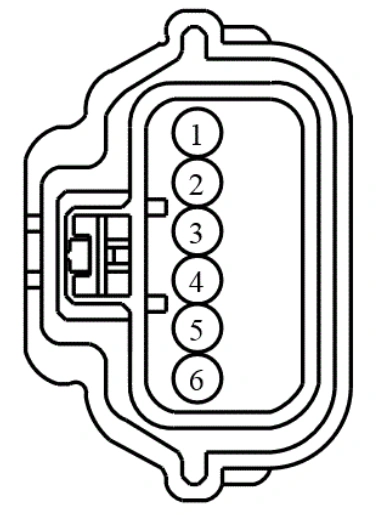

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | LE136 (GN-OG) | 22 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPVREF1) | |
2 | VE701 (YE-OG) | 22 | SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) | |
3 | RE136 (VT-GN) | 22 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPRTN1) | |
4 | RE137 (YE-GN) | 22 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPRTN2) | |
5 | VE702 (BU-WH) | 22 | SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) | |
6 | LE137 (BU-GY) | 22 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPVREF2) |
