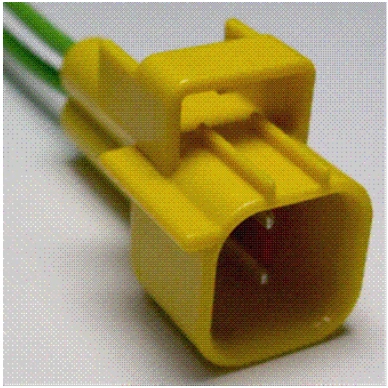

CONNECTOR VIEWS > CONNECTOR END VIEW C1917 - HEATED OXYGEN SENSOR

(HO2S) #12

Connector:C1917

Description

HEATED OXYGEN SENSOR (HO2S) #12

Color

Harness

12C508/14B060

Base Part #

part# N/A

Service Pigtail

See Below
