Check for Terminal Part Numbers

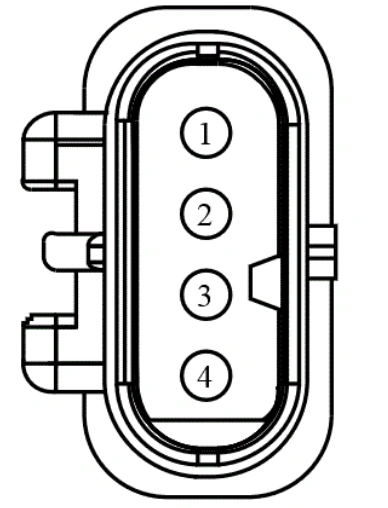

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CBK02 (GN) | 18 | FUSE - 40 OR CIRCUIT BREAKER (VPWR 2) | |
2 | CE233 (WH-OG) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) | |
3 | RE731 (WH) | 18 | SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (LSF_GND) | |
3 | RE731 (BK) | 18 | SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (LSF_GND) | |
4 | VE731 (YE-GN) | 18 | SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) |
Available Pigtail Kits
