Connector End View C2066 - Blower Motor

OEM Connector End Views

Source configuration appliesSource reference 4,266HTML edition

← Chapter contents Manual collection

part# N/A

Service Pigtail

See Below

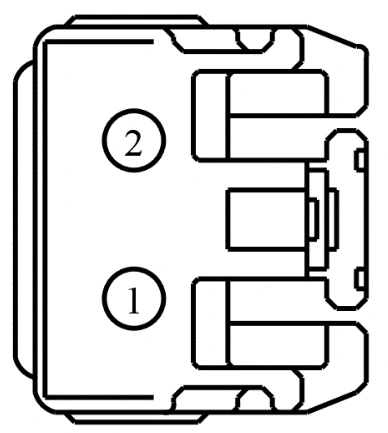

Connector End View C2066 - Blower Motor — original illustration 1, reference 4266Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RH301 (GY-VT) 10		CTRL MOD. - BLOWER VARIABLE SPEED # BLOWER MOTOR -
2	CH402 (YE-GN)	10	RELAY - FRONT BLOWER

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-236 3U2Z-14S411-PA

Gauge:

10

Pin material:

Tin

Cavities:
