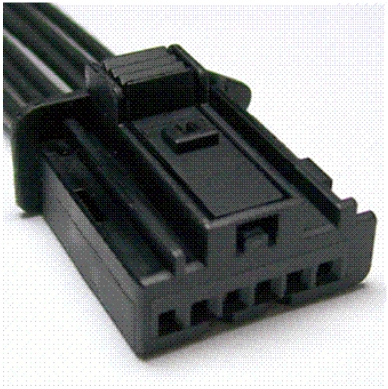

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | RH111 (GY-BU) | 22 | CTRL MOD. - CLIMATE # GENERIC VREF RETURN | |
2 | VH440 (BU) | 26 | SENSOR - DOOR POSITION TEMP. LEFT | |
3 | LH111 (BN) | 26 | CTRL MOD. - CLIMATE # GENERIC VREF | |
4 | * | * | Not Used | |
5 | CH239 (WH) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2 / OPEN (IF PLUS) | |
6 | CH238 (OG) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 1 / CLOSE (IF PLUS) |
Available Pigtail Kits
Service Part Number:
Pigtail Kit Part Number
BU2Z-14S411-MA
WPT-1151
Gauge:
18
Pin material:
Tin
Cavities:
6
Vehicle Uses
Motor - Heater A/C Mode Door
Motor - Heater/AC Blend Door
Motor - Heater/AC Blower (Auxiliary)
